Description
Product Overview

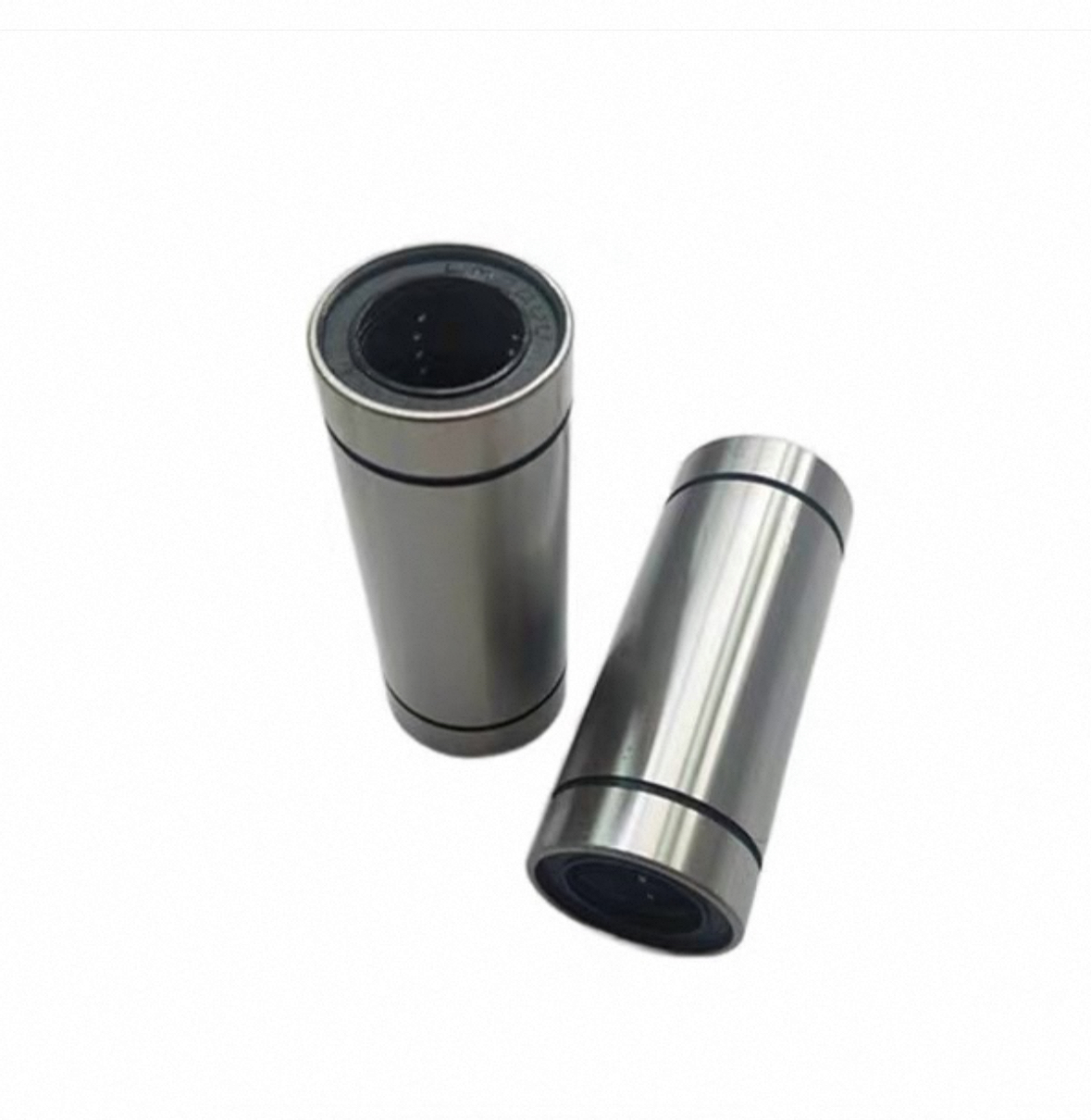

The LME…LUU Linear Bearing Series is the extended-length (long-type) version of the inch-size LME…UU bearings. Designed for applications requiring greater rigidity, higher load capacity, and improved shaft guidance, these bearings provide smooth, low-friction, and reliable linear movement.
The elongated outer shell provides a longer contact surface and supports more rolling balls, making LME-LUU ideal for long-stroke systems or machines with high rigidity requirements. These bearings fit into standard inch-size bearing housings such as SC-LUU, SBR-LUU, TBR-LUU blocks, and operate with inch-diameter hardened shafts.
Key Features
Extended Length for Increased Stability
Longer contact area reduces deflection and improves straightness during long-travel motion.
Higher Load Capacity
Supports more steel balls than the standard LME-UU series, allowing higher radial loads and longer duty cycles.
Smooth & Quiet Linear Motion
Precision-ground raceways ensure low friction, low noise, and stable performance during repetitive movement.
Improved Alignment Accuracy
Long-body structure provides better guidance and reduces vibration, protecting both the bearing and the shaft.
Sealed Design (UU)
Double rubber seals keep out dust and contaminants, extending bearing lifespan.
Typical Applications
The LME…LUU extended linear bearing series is widely used in:
CNC routers, mills & engraving machines
Automation and robotic handling equipment
Linear positioning stages & precision tables
3D printers, laser systems, DIY mechanical projects
Packaging, labeling, and cutting machinery
Measuring instruments & laboratory equipment
Industrial automation systems with long-stroke motion
Why Choose Our LME…LUU Series?
Made from premium bearing-grade steel under strict manufacturing control
Extended length provides high rigidity and improved movement accuracy
Smooth, stable, and low-noise operation
Compatible with standard inch-size linear shafts and LUU housings
Long service life with excellent load-handling capability
OEM customization + fast delivery available
