Description
Product Overview
The EG Series Linear Guideway is a compact, high-precision linear motion system designed for applications with limited installation space and moderate load requirements.
It uses a four-row ball circulation design to distribute loads evenly in all directions, ensuring stable, smooth, and accurate linear motion. The EG series is suitable for precision machinery, small CNC equipment, 3D printers, and automated assembly systems.

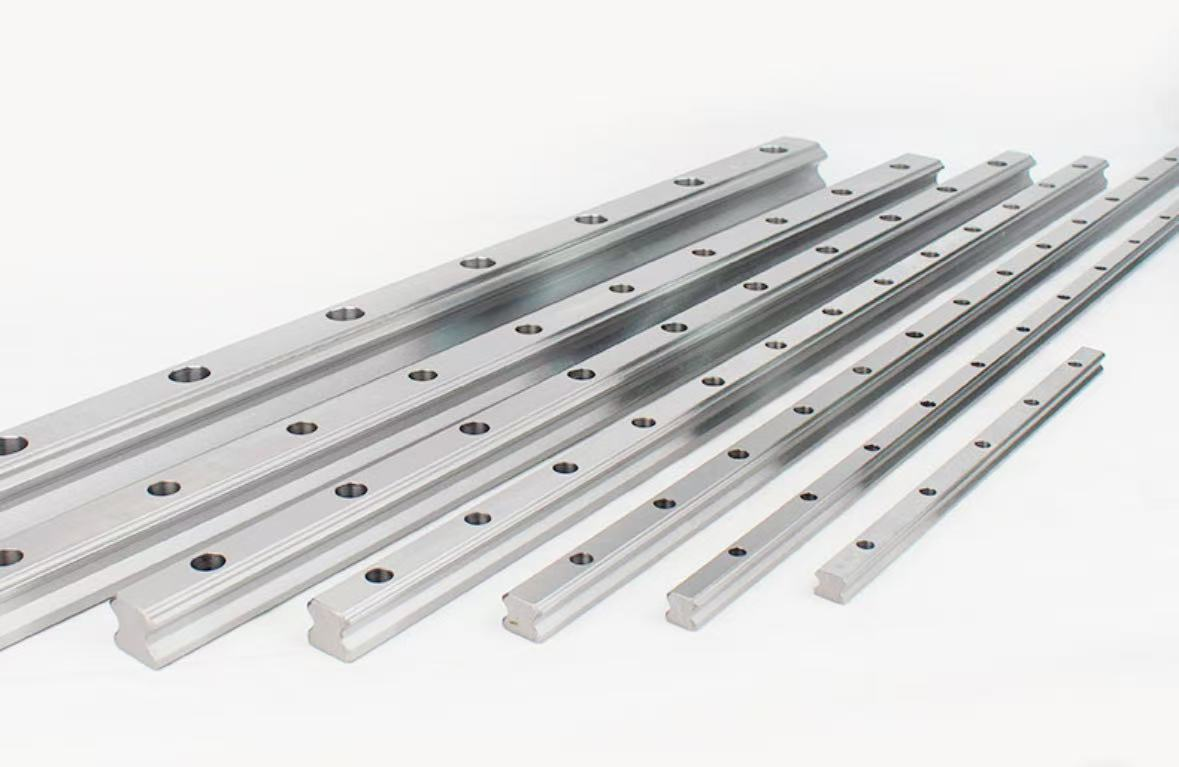

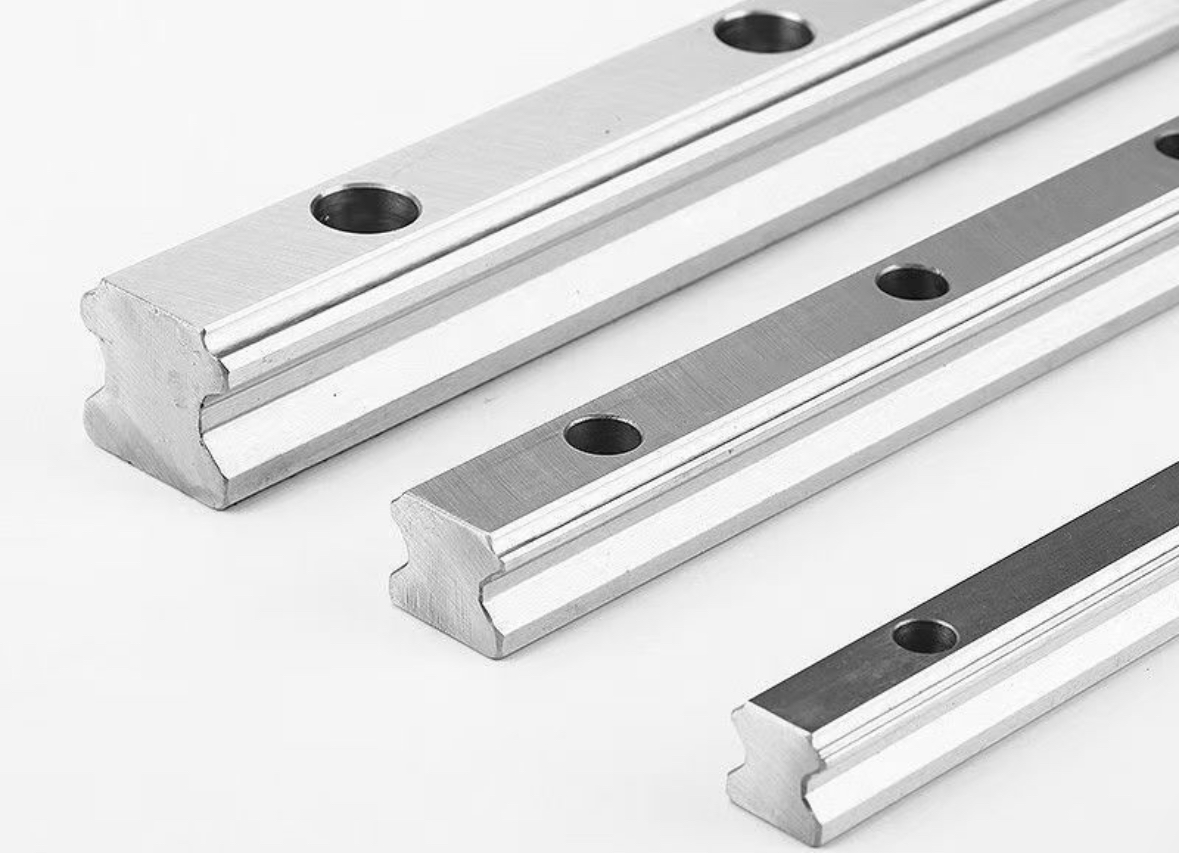

The system combines a hardened and ground steel rail with a precision-engineered sliding block, providing reliable performance in both low- and medium-load applications.
Key Features
1. High Precision Motion
Precision-ground raceways and high-quality steel balls ensure smooth, low-noise, and accurate linear movement.
2. Compact Design
Small cross-section and lightweight design allow installation in space-constrained applications.
3. Four-Direction Load Capacity
Even load distribution along radial, reverse radial, and lateral directions ensures stability under complex forces.
4. Low Friction & Smooth Operation
Ball circulation and hardened rails reduce friction and wear for consistent performance.
5. Easy Installation

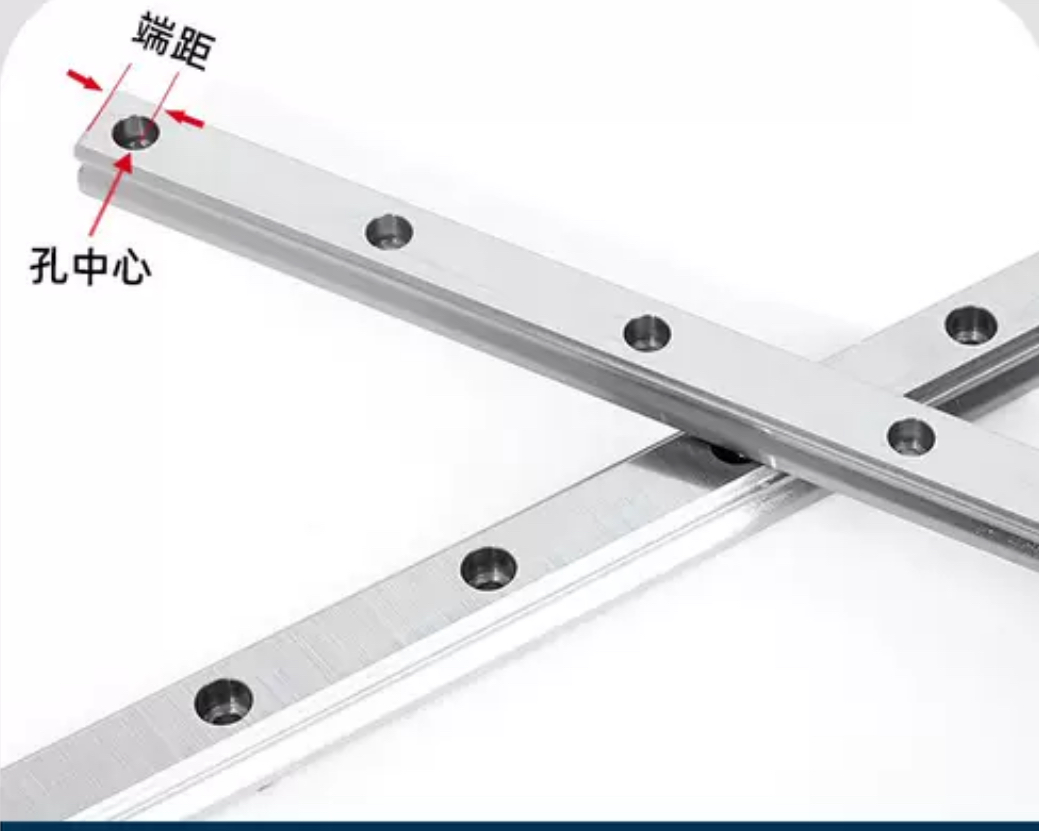

Standardized mounting dimensions simplify assembly and replacement in CNC, automation, or small machinery setups.
6. Durable Construction
Hardened raceways and steel balls offer excellent wear resistance, long service life, and stable performance under continuous operation.
Typical Applications
The EG Series linear guideways are widely used in:
Small CNC machines and machining centers
3D printers and laboratory automation equipment
Industrial automation and assembly lines
Packaging, labeling, and cutting machines
Inspection and testing instruments
Light-duty material handling and robotic systems
Why Choose Our EG Linear Guideways?
High-precision grinding for accurate linear travel
Compact and lightweight design suitable for space-limited setups
Smooth, stable motion with low noise
Four-direction load support for better stability
Multiple sizes and customizable block/rail lengths
OEM services for special machining and pre-load requirements
Competitive pricing, fast production, and global delivery
Reliable performance for industrial, laboratory, and DIY automation applications
