BTCM HGH Series – High-Rigidity Linear Guide for Precision Transmission
Reliable, Smooth, and High-Accuracy Motion for Modern Automation**

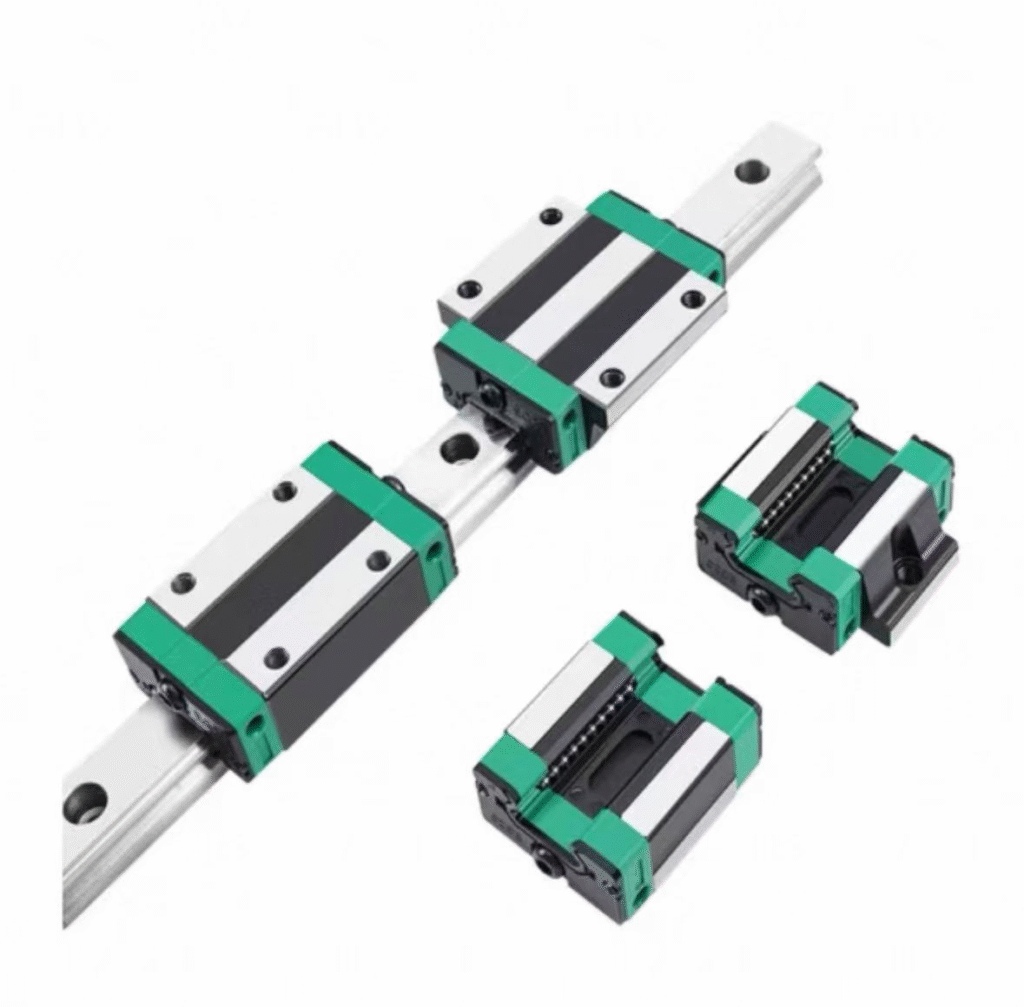

In the fields of automation equipment, precision machining, and industrial robotics, the HGH series square-type linear guideways from BTCM™ serve as a robust and indispensable motion component. Designed with high rigidity, excellent load capacity, and long-term precision stability, the BTCM HGH linear guide provides a solid foundation for advanced manufacturing and high-speed automation systems.
Enhanced Dust-Proof Protection Ensuring Long-Term Precision & Stability
The BTCM HGH linear guide adopts a comprehensive dust-proof design, ensuring stable operation even under demanding industrial conditions.
The slider and rail interface is equipped with:
• High-density end seals
• Bottom sealing strips
• Double-sided wipers
• Optional metal scraper protection
Together, they form a 360° full-coverage sealing system, preventing dust, debris, and fine particles from entering the raceway.
This effectively reduces wear on the steel balls and rail surfaces, ensuring:
• long-term transmission accuracy,
• better motion smoothness,
• significantly extended service life.
This makes BTCM HGH guides particularly suitable for dust-intensive environments, including woodworking machines, cutting systems, textile machinery, packaging equipment, and general automation.
High-Quality Steel Balls Achieving Smooth, Low-Friction, and Stable Motion
At the core of the BTCM HGH linear guide are high-precision steel balls, optimized for uniform load distribution across all four directions.
Key performance advantages include:
✔ Low Friction & Smooth Movement
The rolling contact mechanism minimizes resistance, allowing the slider to travel smoothly with almost no vibration—ideal for high-speed reciprocating motion or delicate low-speed positioning.
✔ High Load Capacity & Rigidity
The optimized ball circulation structure maintains a stable load-bearing condition, ensuring reliable performance even under heavy loads or multi-axis operation.
✔ Efficient Energy Use
The low-friction movement reduces motor torque requirements, improving the overall efficiency of the machine.
Industries such as precision CNC machines, SMT pick-and-place systems, packaging automation, and industrial robots all benefit from these performance characteristics.
Ultra-High Precision for High-Speed and Low-Noise Production
The BTCM HGH linear guide block delivers exceptional positioning accuracy, making it ideal for high-speed automated production lines.
✔ High Repeatability for Precision Manufacturing
With micron-level movement accuracy, BTCM HGH guides help ensure consistent processing results and stable production quality.
✔ Low Noise for a Better Working Environment
The optimized internal circulation structure reduces metal contact noise, making the overall operation quiet and user-friendly.
✔ Low Torque, High Energy Efficiency
Reduced resistance lowers operational energy consumption, decreases machine wear, and supports long-term reliability—an ideal solution for industries with strict precision and energy requirements.
This makes the BTCM HGH series a perfect fit for automotive manufacturing, 3C electronics, semiconductor equipment, medical devices, and high-speed assembly lines.
High-Rigidity Design for Demanding Industrial Applications
The HGH series features a square-type, four-direction equal load structure, offering:
• high structural rigidity,
• excellent moment load capacity,
• strong shock resistance,
• superior stability when mounted on large or heavy equipment.
This makes BTCM HGH guides ideal for applications requiring robust mechanical strength, such as gantry machines, heavy-load automation systems, and industrial robots.
BTCM HGH Series – Built for Reliability, Precision, and Long-Term Performance
With advantages such as:
• comprehensive dust protection
• smooth and low-friction motion
• ultra-high precision
• high rigidity
• low noise and energy efficiency
The BTCM HGH linear guide has become a key motion component supporting modern automated production lines.
BTCM guides are interchangeable with well-known brands such as HIWIN, THK, PMI, and others, while offering competitive pricing and consistent quality.
Contact BTCM for Product Details and Custom Solutions
Whether you need standard HGH linear guides, custom lengths, matched rail-and-block sets, stainless versions, or complete linear motion assemblies, BTCM provides reliable solutions tailored to your needs.
BTCM™ – Precision Linear Motion Solutions for Advanced Automation
